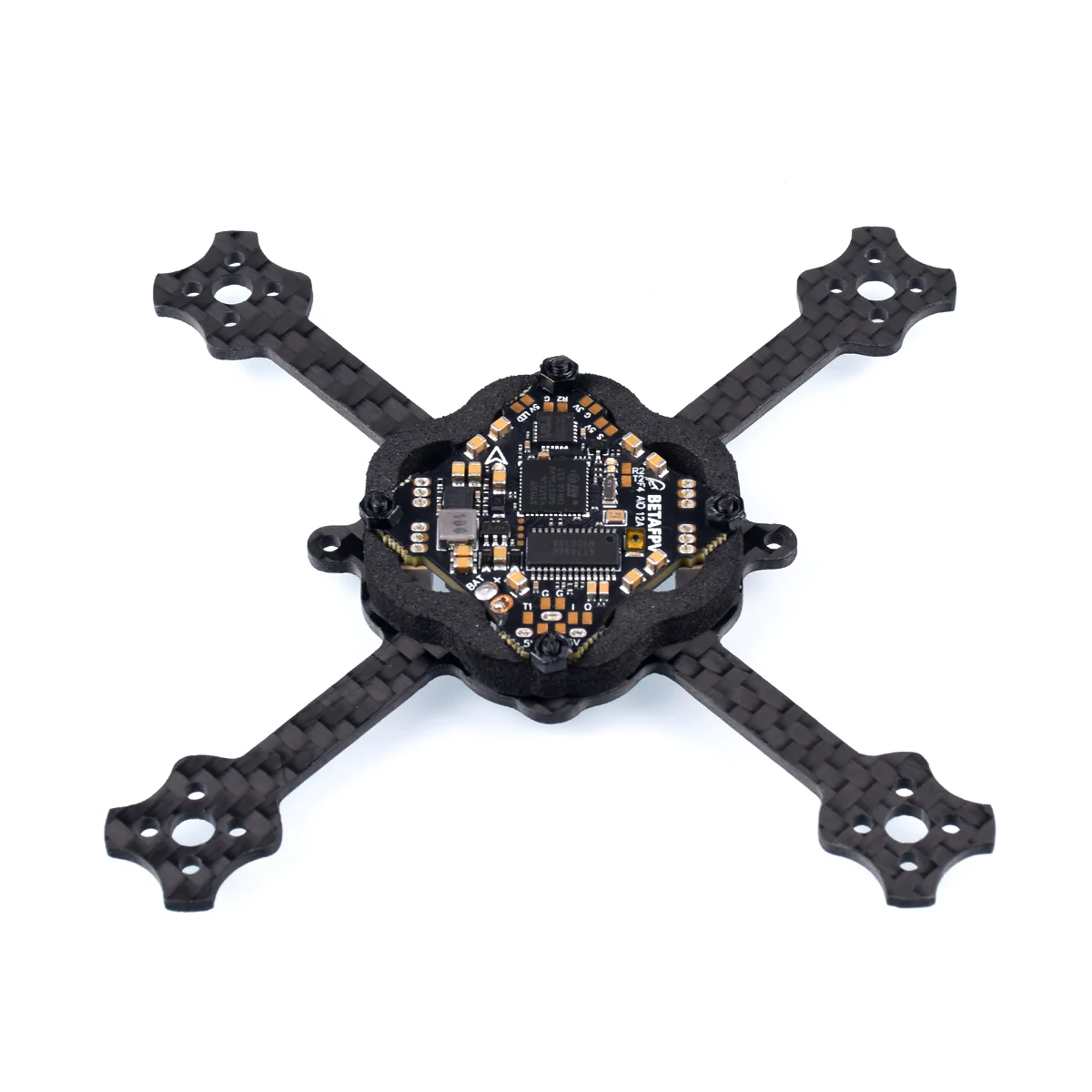

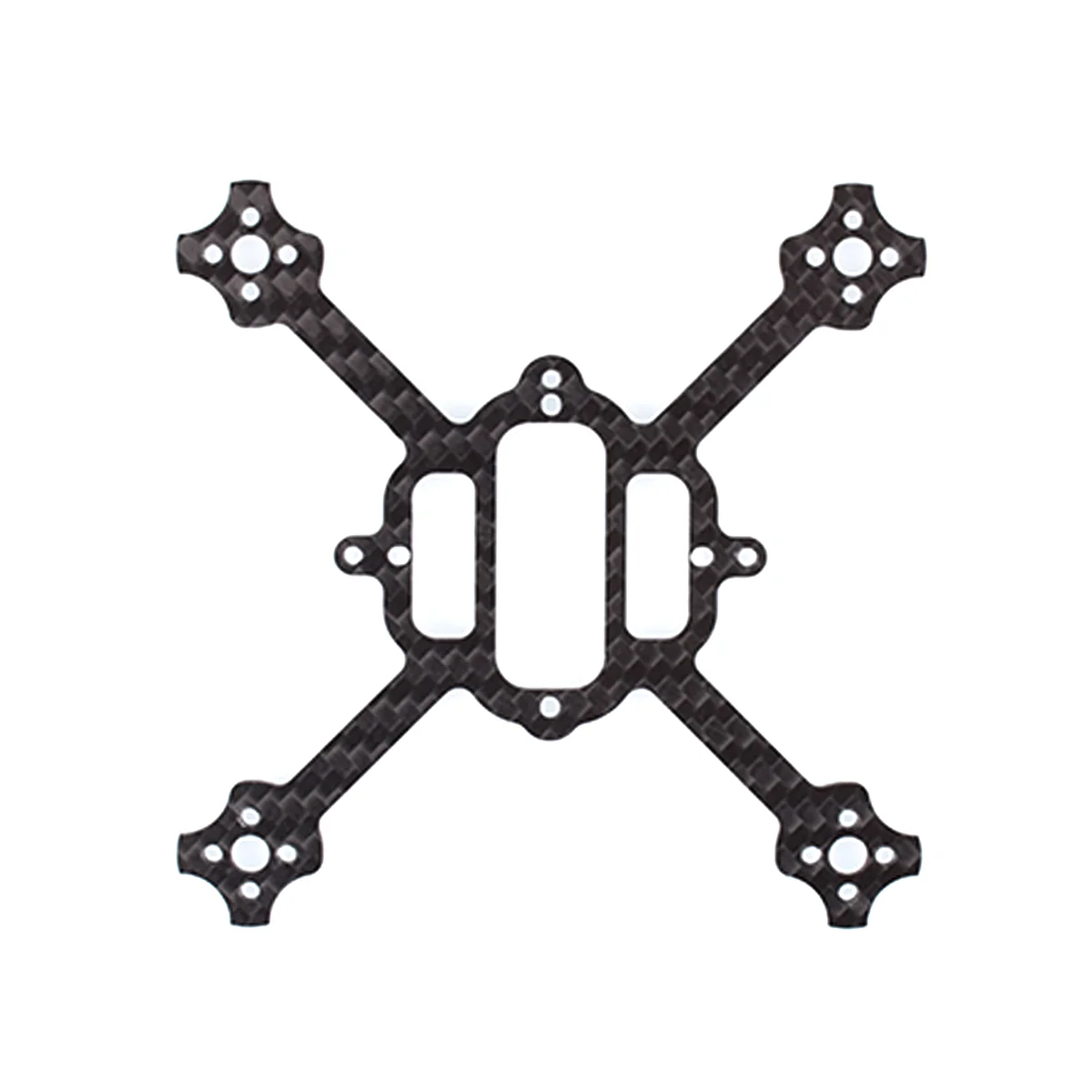

This HX100 carbon fiber frame is customized for HX100 FPV Quad - the first generation of carbon fiber kit of Betafpv, small but with dynamic flight. Compatible with 1103 8000KV motors and F4 2-4S AIO 12A FC. At the same time, it is durable and light enough for a 3S whoop beast.

Bullet Point

• Specially made for HX100 FPV Quad, produced with carbon fiber with a strong root design to be super durable, can increase flight stability while minimizing power loss.
• Convenient installation with the no-slip rubber pads and screws, also come with battery cable tie, can use various battery like 300mAh 3S and 300mAh 2S for different flight experience.
• This durable package can protect the package from deformation during the shipping process.

Specification

• Material: Carbon Fiber
• Diagonal motor distance: 100mm
• Motor mounting hole: for 110x motors( such as 1103 8000KV motors )
• FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm

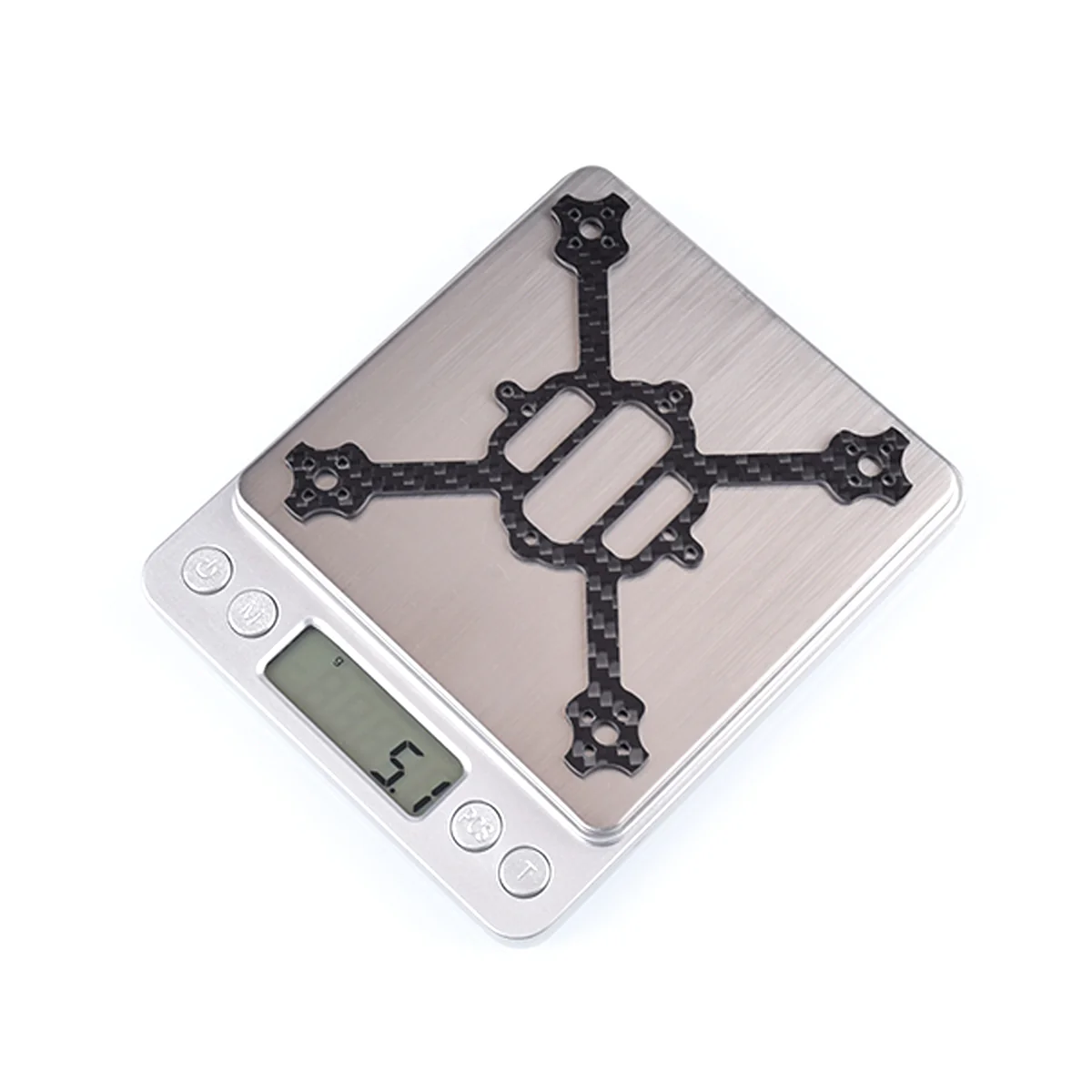

• Weight: 5.1g

Recommended Parts

• Propellers:  65mm 2-blade props(1.5mm shaft hole) / 48mm 4-blade props (1.5 mm shaft hole)

• Motors: 1103 8000KV motors / 1103 11000KV motors
• Batteries: 300 mAh 3S battery / 300 mAh 2S battery
• FC & ESC: F4 2-4S AIO 12A Flight Controller

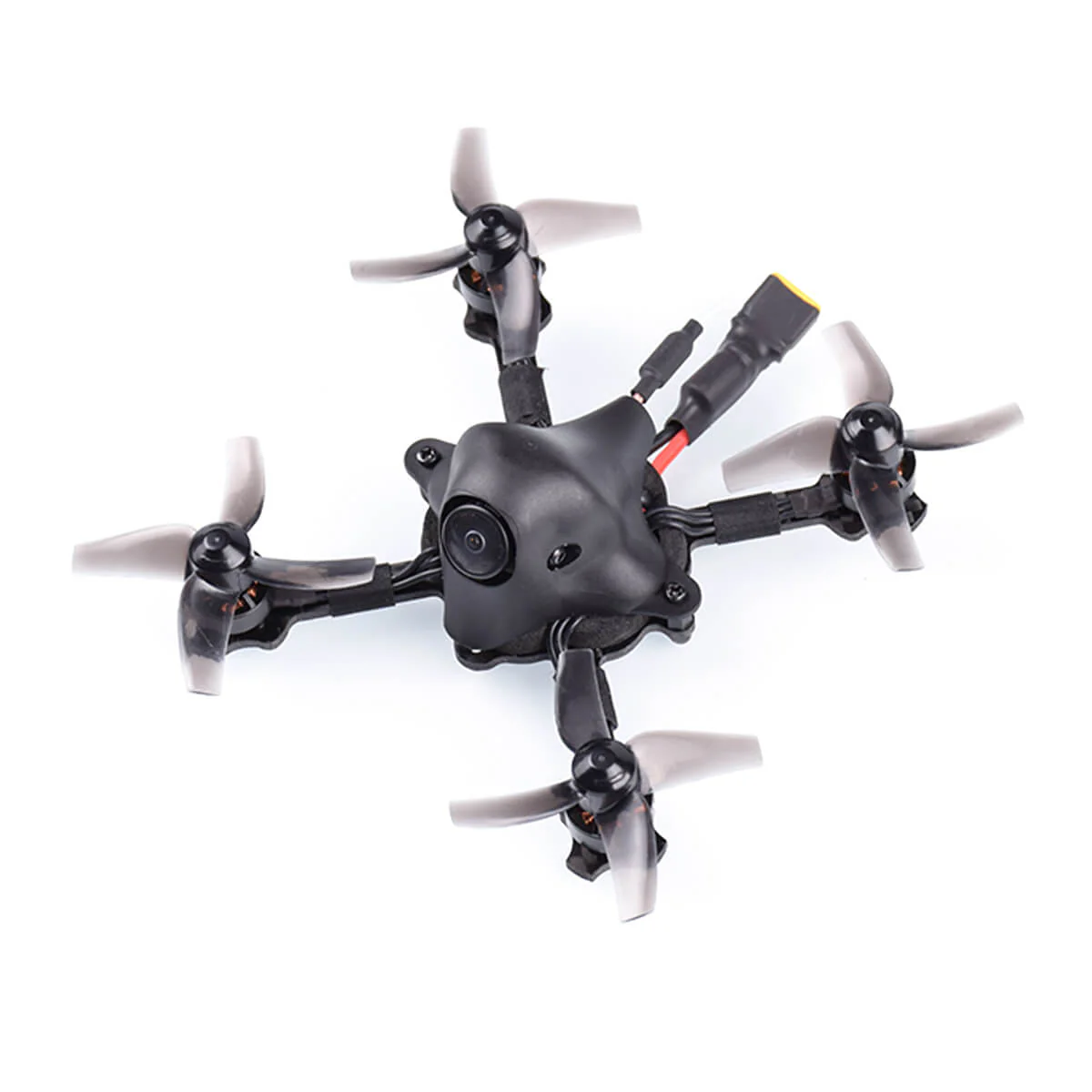

• Drone: HX100 FPV Quad

Package

• 1 * HX100 Carbon Fiber Frame
• 1 * 115mm Battery Cable Tie
• 1 * No-Slip Rubber Pads
• 1 * Pack of Screws
